Electric cnc control normal and reverse twist barbed wire chain link making machine 4 thorns barbed wire making machine

Name: Electric cnc control normal and reverse twist barbed wire chain link making machine 4 thorns barbed wire making machine
Brand: wadjay
Price: 1 USD

Cheap Electric cnc control normal and reverse twist barbed wire chain link making machine 4 thorns barbed wire making machine for sale

Brand Name : wadjay

Certification : ce

Place of Origin : china

MOQ : 1set

Payment Terms : D/A, T/T, Western Union

Supply Ability : 10

Delivery Time : 5-8 work days

Packaging Details : case

Wire Diameter (mm) : 1.6-3mm

Weight (KG) : 1180

Power (kW) : 2.2

Diameter of wire barbs : 1.6-2.8 mm

Diameter of strand wire : 1.6-3.0 mm

Twisted number : 3-5 or as your requirment

barbed space : 76mm, 102mm, 127mm

Main drive shaft speed : 402 r/min

Production capacity : 30 kg/hour

Contact Now

Electric cnc control normal and reverse twist barbed wire chain link making machine 4 thorns barbed wire making machine

Product Description

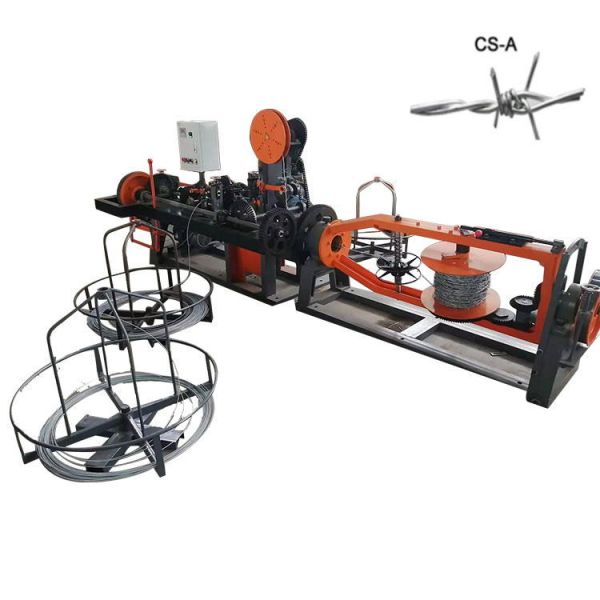

Barbed wire machine is a machine that makes metal wire into barbed wire. Common barbed wire machines include single twisted barbed wire machine and double twisted barbed wire machine.

Items	CS-A
Main wire Diameter	1.5-3.0mm, (Max.800MPA)
Barbed wire diameter	1.6-2.8mm, (Max.700MPA)
Barbed space	3”, 4”, 5”
Motor power	2.2kw
Twisted number	3-5
Raw material	Galvanized wire or PVC coated wire.
Production	70kg/h, 25 meters/minute
Total weight	1200KG
Dimension	1950×950×1300mm
Dimension	1760×550×760mm

Project show
