Q35Y-50 Hydraulic Combined Punching and Shearing Ironworker Pressing and Cutting

Henan WadJay Machinery Co.Ltd

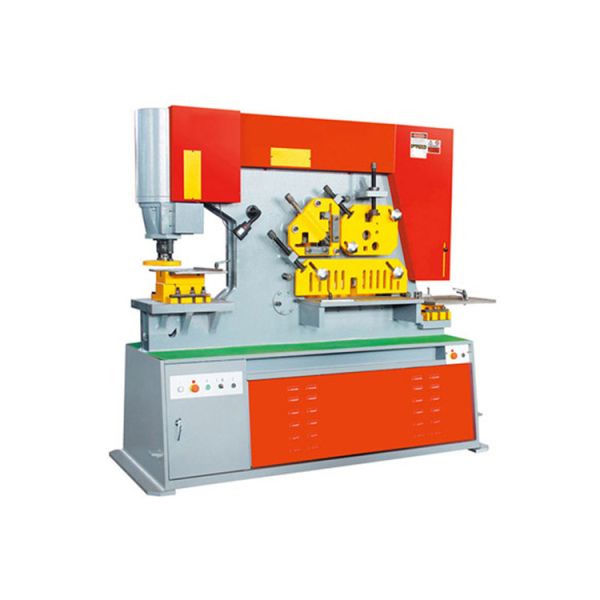

Q35Y-50 Hydraulic Combined Punching and Shearing Ironworker Pressing and Cutting

  • 1
  • 2

Brand Name : wadley

Model Number : Q35Y-50

Certification : ISO 9001

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100 sets / month

Delivery Time : 15 working days

Packaging Details : wooden case

Warranty : 1 Year

Key Selling Points : High-accuracy

Motor Power (kW) : 7.5

Rated Power : 4kw

Function : Steal Punching and Shearing Cutting

Applicable Industries : Manufacturing Plant

Contact Now

Q35Y-50 Hydraulic Combined Punching and Shearing Ironworker Pressing and Cutting


Q35Y-50 Hydraulic Combined Punching and Shearing Ironworker Pressing and Cutting

Main function:

Punching:
Full range of universal punches and dies are available.unique style allows for large
angle iron punching and large channel
punching.Large viewing window on stripper swing away design for ease of operation.
large two piece gauging table
with rulers and stop as standard fittings.Quick change coupling nut and sleeve for rapid
replacement of change.

Shearing:
Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down
device for round/square bar,
channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability
to cut angle at 45°both top and bottom leg.
This gives the operator the ability to make a picture frame corner for perfect welds.Diamond
shaped blade for quality cuts that is minimal
material lost and deformity. Easily adjustable hold-down device for accurate plate cutting.
Large 15″squaring arm with inlaid scale.Special anti-distorted blade for quality cutting.Lower
blade has four usable edges.There is screw allow for gap adjust no shim needed.

Notching:
Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and
three gauging stops for precise positioning. The notching section of this hydraulic ironworker
is perfect for notching out metal plate,
angle iron and much more. The notching station also has an oversized table with material stops.
This section of the machine can also be outfitted with the optional vee notcher.

Bending:
Also bend the plate below 500mm. All the components of Machine are of the highest quality
in their safty, function, capability and maintenance

Q35Y-50 Hydraulic Combined Punching and Shearing Ironworker Pressing and Cutting


Q35Y-50 Hydraulic Combined Punching and Shearing Ironworker Pressing and Cutting

Model Punching Pressure Max cutting thickness(mm) Max.punching diameter(mm) Angle of shear(°) Slider trip
(mm)
Trips frequency
(times/min)
Throat depth
(mm)
Punch depth
(mm)
Q35Y-12 35 12 25 7 35 10-18 115 12
Q35Y-16 60 16 25 7 80 9-25 300 16
Q35Y-20 90 20 30 8 80 10-28 355 20
Q35Y-25 120 25 35 8 80 9-18 400 25
Q35Y-30 160 30 38 8 80 7-16 600 26
Q35Y-40 200 40 40 8 100 6-16 530 35

Q35Y-50 Hydraulic Combined Punching and Shearing Ironworker Pressing and Cutting


Q35Y-50 Hydraulic Combined Punching and Shearing Ironworker Pressing and CuttingQ35Y-50 Hydraulic Combined Punching and Shearing Ironworker Pressing and Cutting


Q35Y-50 Hydraulic Combined Punching and Shearing Ironworker Pressing and Cutting

Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).


Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.


Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.


Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.


Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.


Q6.Can I trust you?
Sure, we're Made in China Gold Suppliers,


Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.


Q8.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
